CE-ANT6

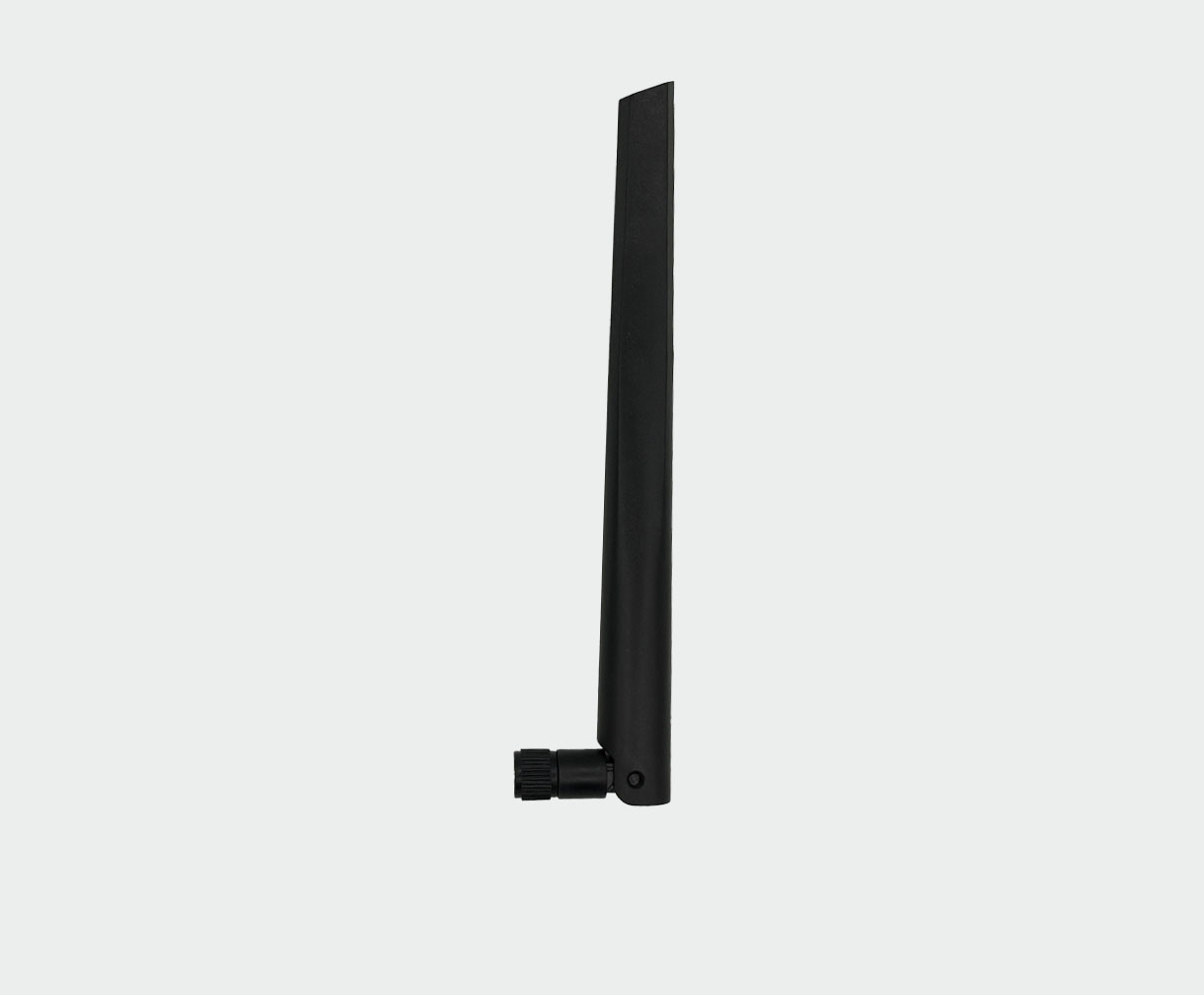

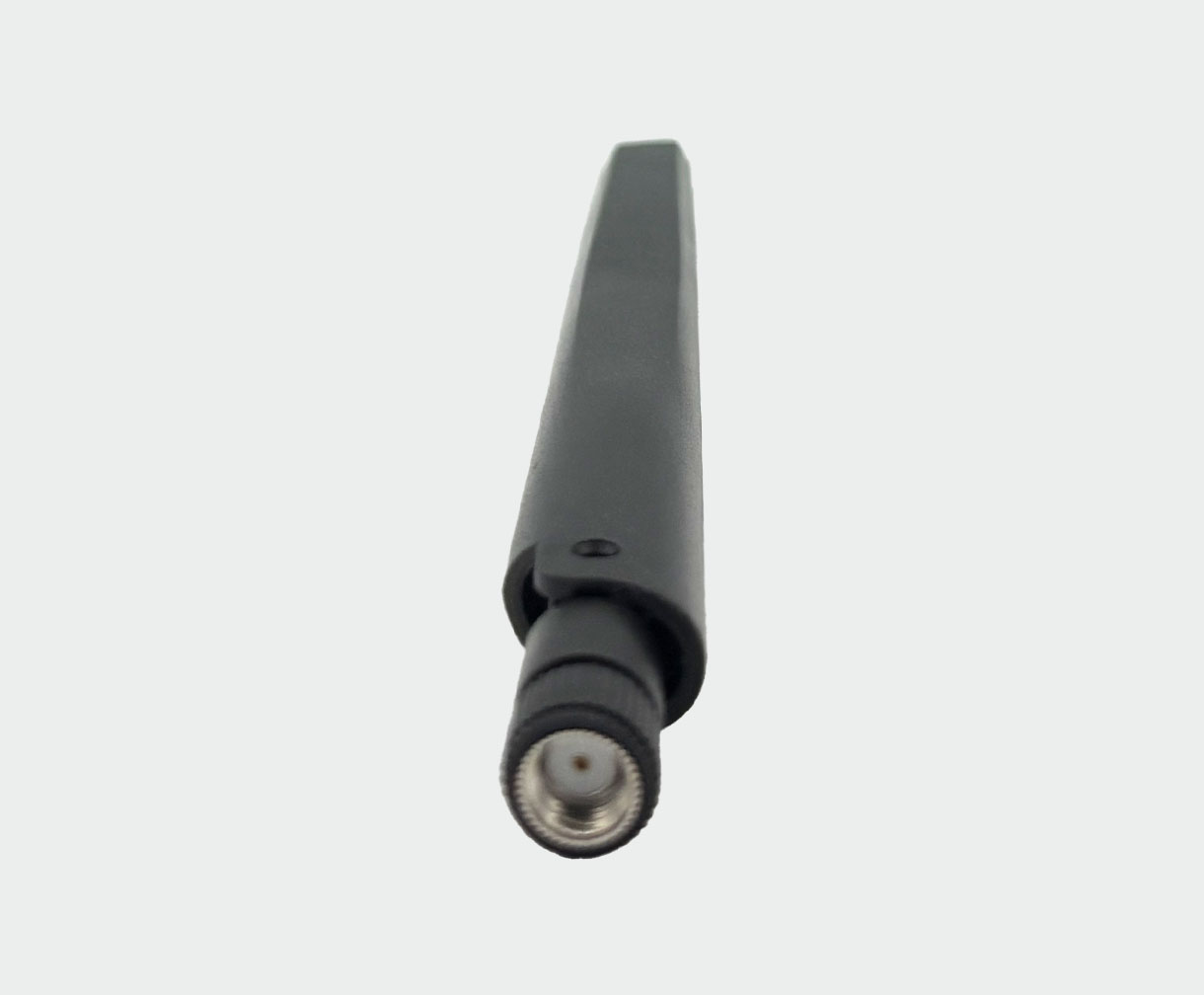

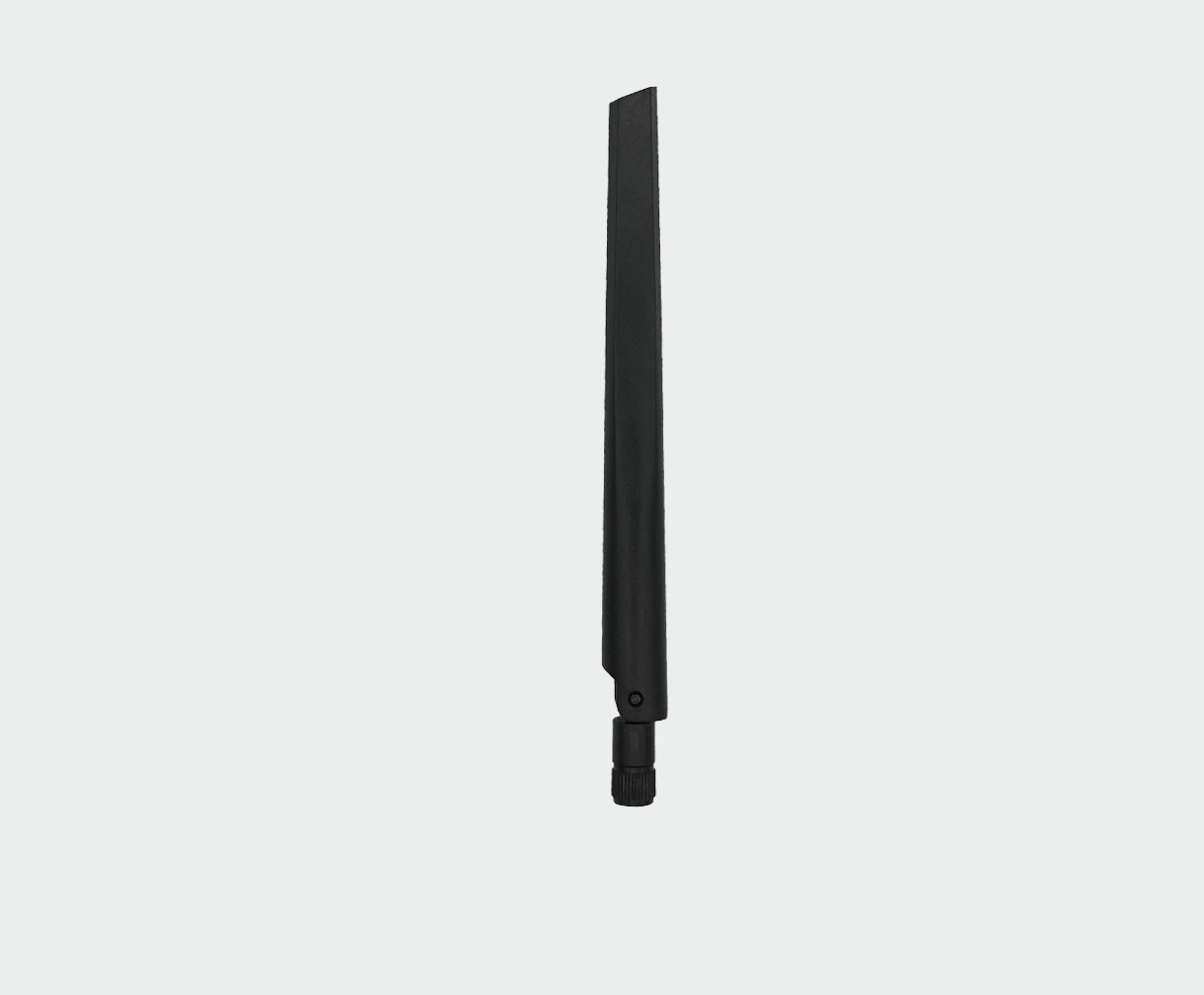

High-quality single-band rubber duck antenna with a frequency range of 2.4/5 GHz. SMA female connector with 5 dBi nominal gain. Omnidirectional tilt/swivel blade rubber duck antenna is 5.46 inches tall and 0.39 inches wide. The rubber duck antenna features an input VSWR (voltage standing wave ratio) of 2:1. Linearly polarized antenna can operate at temperatures ranging from -40 °C to 60 °C.
Specifications
The CE‑ANT6 is a compact replacement Wi‑Fi antenna designed for CE Labs media players, providing stable wireless connectivity for digital signage and streaming applications. It combines a durable rubber-encapsulated housing with an internal radiator tuned for stable operation in the specified specified Wi‑Fi band. It is well suited for commercial AV installations where reliable network performance is critical.
- Frequency2.4/5 GHz
- Impedance50 Ohms
- Nominal Gain5dBi
- ConnectorSMA Female
- DesignTilt/Swivel
- PolarizationLinear
